Product Description

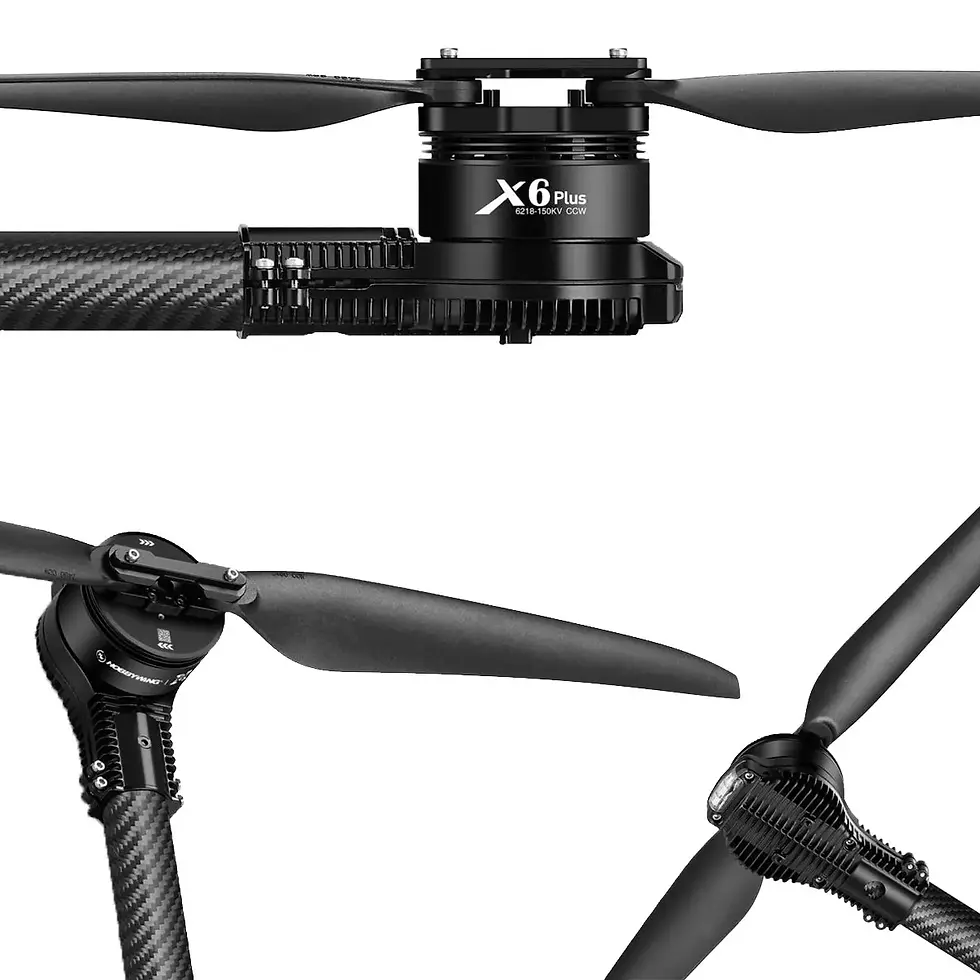

Upgrade your agricultural UAV platform with the Hobbywing XRotor X6 Plus Motor — a professional-grade heavy-lift motor tailor-made for spraying, mapping and service drones in the Indian agricultural sector. Aero Drone Technologies Pvt. Ltd. offers this high-performance motor across India with nationwide shipping and technical support.
Key Features & Benefits
High thrust capacity: The X6 Plus motor supports a maximum thrust of 11.8 kg per axis (46 V, sea level) making it ideal for drones with large payloads or agricultural spray systems. HOBBYWING+1
Recommended take-off weight & battery: Designed for 3.5-5.5 kg per axis take-off weight at 46 V and compatible with 12–14S LiPo battery configurations. HOBBYWING+1
Low KV and large stator size: With a 150 KV rating and a stator size of 62 × 18 mm, this motor is optimized for torque and stability under heavy loads. Robu+1
Robust field-ready design: Featuring IPX6 ingress protection (water- and dust-resistant) and a high-efficiency FOC (Field-Oriented Control) algorithm; built for demanding agro-drone operations in Indian field conditions. HOBBYWING+1

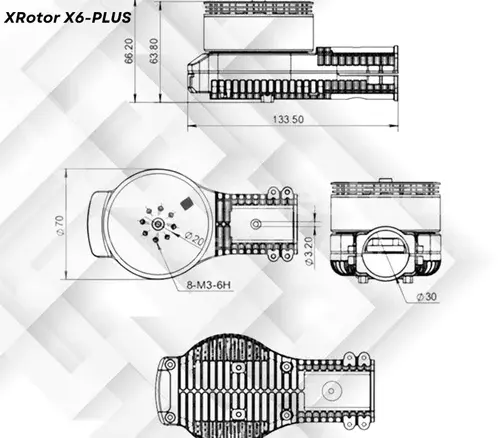

Optimized for large carbon-tube arms: Designed for 30 mm diameter carbon fibre arms (common in agricultural UAV builds) and 24×8” propellers for optimum lift. uavmarketplace.in+1
Heat dissipation & signal reliability: Improved heat-sink/motor structure ensures lower operating temperature; supports dual-throttle signal, PWM and CAN communications for stable performance. HOBBYWING
Technical Specifications (Highlight)
Max Thrust: 11.8 kg/axis (46 V) HOBBYWING+1
Recommended Take-Off Weight: 3.5-5.5 kg/axis (46 V) HOBBYWING+1
KV Rating: 150 rpm/V Robu+1
Stator Size: 62 × 18 mm Robu+1
Ingress Protection: IPX6 HOBBYWING+1
Operating Temperature Range: –20 °C to +50 °C RCDhamaka
Recommended Battery: 12-14S LiPo (Max input ~61 V) uavmarketplace.in+1
Why Buy from Aero Drone Technologies Pvt. Ltd.?
Location in Vijayawada with nationwide dispatch across India — ideal for OEMs and agro-drone builders.
Deep expertise in agricultural drone systems: Our team understands the specific requirements of spray-drones, high-load motors, and reliable field deployment.
Support for integration: We help you choose compatible ESCs, propellers, carbon arms, and ensure proper calibration and setup for Indian conditions.
Ideal For
OEM manufacturers building agricultural drone platforms (10L, 20L, 30L) requiring robust heavy-lift motors.
Retrofitters replacing older motors on spray drones or upgrading payload capability.
Commercial service providers flying in Indian farms, needing high-thrust, reliable motors capable of long flight times and heavy payloads.
agriculture drone motor India, heavy-lift UAV motor, Hobbywing X6 Plus motor, 150 KV drone motor India, spray-drone motor India, agro drone parts India, XRotor X6 Plus motor.
Installation & Field Tips
Mount the motor on carbon fibre arms of recommended diameter (≈ 30 mm) for optimum performance and structural compatibility.
Pair with compatible 12-14S LiPo batteries, ensure wiring and connectors are heavy-gauge to handle current load and minimize voltage drop.
Use appropriate props (e.g., 24×8”) as specified for the motor-system to reach the max thrust ratings.
Ensure sufficient cooling and airflow; though the motor is built for tough conditions, spacing from heat sources and adequate ventilation improve performance.
For spray-drone applications in Indian fields (dust, chemicals, high humidity), regular inspection and cleaning of motor mount/prop assembly will enhance durability.
Warranty & After-Sales Support
Standard manufacturer warranty applies (please inspect the motor on delivery). Aero Drone Technologies provides local support in India, sourcing spare parts, mounting hardware and offers guidance for assembly and calibration.
